Circuit Board

Macro and Micro Picture of the Day 2020-09-25

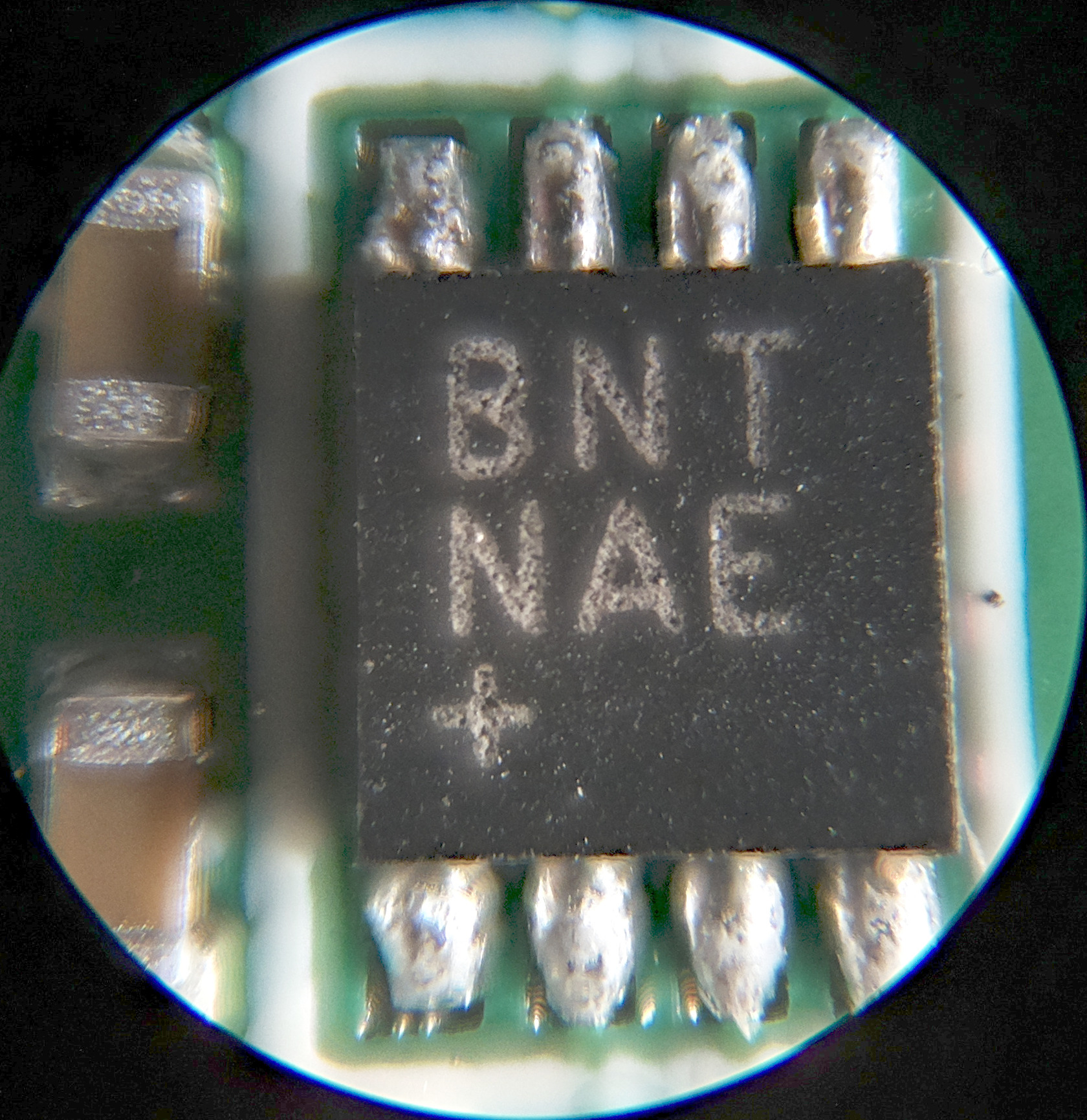

Here is part of a printed circuit board at 40x magnification. Shown is an integrated circuit and a couple of surface mount capacitors. The integrated circuit is size 2 x 2 mm, and its 8 legs are each 0.25 mm wide. Its part number is MAX14595ETA+T, described as a low power dual channel logic level translator. The writing on it is "BNT NAE +".

Equipment used: AmScope M150C microscope with Raspberry Pi camera module V2 (8MP).
